Style 6673

USER CHANGEABLE COLOR is standard on all BRG LED digital clocks.

BRG 6673O with user changeable color LEDs

BRG Time Zone Clocks are accurate for life without the need for manual or external time updates. A GUI touch screen IR remote control is available to ease configuration.

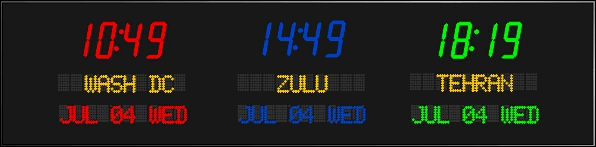

BRG's 6673 series allows you to change the color of any zone or zones with ease.

Change the color of 1 Zone, Several Zones or All Zones
Have rotating zone defined by another color for easy recognition
Program time and zones labels as situations change
7 Colors Available: Red, Blue, Green, Yellow, Magenta, Cyan or White
Clear smoked lens to highlight the 7 different colors
Highlight your operations area or hot zone by programming a separate color
Make Zulu Time stand out by programming it in a different color so it will stand out
Tired of red LEDs switch to another color anytime.
Provides great flexibility
Adapt easily to a changing world

Introducing BRG's New Time Commander Graphical Remote Control Programmer Option. Recommended for Programmable Time Zone Clocks.

Click for more information

Allows you to change the:

Time Display Rules for each zone
LED Colors (user changeable models)
Intensity (global or by zone)
Zone Labels

Use on multiple time zone clocks
Easy to use
Eliminates the need for a computer interface
Wireless IR remote
Color touch screen for ease
Saves time when reprogramming clock
Large 7 inch color LCD touch screen display
Rechargeable Battery

The Time Commander is only compatible with BRG Time Zone Clocks Manufactured after October 2018

Call 866-252-2704 or 316-530-8854

Time Zone Display Style 6673

Model 6673G with User Changeable Multi-Color LEDs

The 6673 series LED digital world time zone clocks have bar-segment LED time displays with a ten character dot matrix digital zone labels and date.

More zones may be displayed than physically available by page flipping to another set of zones – For example, a 5 zone display can actually display up to 20 zones by page flipping through 4 sets of zones. Selected zones can remain constant while other zones change.

All zones are precisely synchronized with one another.
Supports Page Flipping to display more zones than physical zone positions available.
Dynamic digital lettering can include fixed titles and/or date, day, day of the year, etc.
Factory synchronized with the U.S. Atomic Clock.
Accurate for Life – no manual adjustments are required for the life of the display, no sync wires, no radios, no problems.
Models with digital zone labels can page flip to display more zones than physically available.
Time and configuration are maintained during shipping and power outages
Operating Voltage: 90-265 volts AC.
Many control, sync methods, power and color options are available
Infrared remote control included (RF remote optional)
Includes your choice of an Ethernet or USB interface for easy time zone parameter control.
Includes BRG's F5 Anodized Black Aluminum Frame Learn More

Call 866-252-2704 or 316-530-8854

Now with 3X more LED's than competing products!

Available Options for the 6673 Time Zone Clock
Computer Interface and Time Sync Options
Option	Unit	Description
EN	Per Clock	Ethernet Interface (NTP time sync and UDP parameter control)
GP	Per Clock	GPS Atomic Time Receiver (Indoor or Outdoor Mount)
PC	Per Clock	PC Serial Port Interface (RS232/422 Converter)
RC	Per Clock	DuraTime 2.4 GHz Radio Transceiver for synchronization or parameter control
SB	Per Clock	IRIG-B / SMPTE Receiver
WF	Per Clock	Wi-Fi Receiver
SR-ST	Per Clock	Serial Wire Sync Receive / Transmit
ST	Per Clock	Serial Wire Sync Transmit
Call 866-252-2704 or 316-530-8854 for questions and assistance
Misc Options
Option	Unit	Description
AB	Per Clock	Auto Brightness
M16	Per Zone	Add 1.8" Seconds display to one zone
M26	Per Zone	Add 2.5" Seconds display to one zone
M46	Per Zone	Add 2.5" Seconds display to one zone
TS	Per Clock	Add a temperature senor to one zone
TM	Per Clock	Add Timer and IR receiver to time zone clock
PM2	Per Clock	Double Pole Mount for ceiling mounting

Remote Control Options
Option	Description
IR1	The infrared remote control is included with the purchase of a time zone clock
USB-IR	IR dongle for your PC that allows you to control the time zone clock can be substituted of the IR1 Remote
IR1LR	Long Range IR Remote with 100 ft. range
TC	Time Commander graphical IR remote control

Power Configuration Options
Option	Description
P0812	12 ft. power cord with US Plug (Default)
P0808	8 ft. power cord with US Plug
P11	8.5 ft. power cord with UK Plug
P16	8.5 ft. power cord with Euro Plug
P12	6.5 ft. power cord with Australian Plug

The 6673 Models

1.8" LEDs are visible up to 40 ft.

Model

Zones

Time Disp.

Date Disp.

Label Disp.

Inches/td>

Pre-Built

Download Spec Sheet

Buy a Multi-Color LED Clock Online or order through GSA Advantage.

GSA orders please call with zone labels

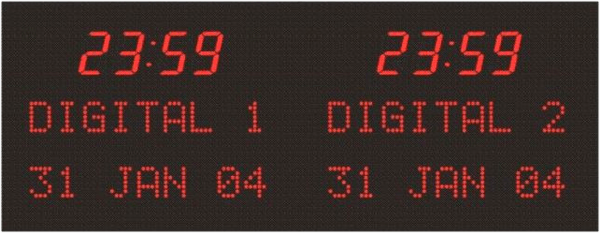

6673A

1.8"

1.2"

10.25

26.25

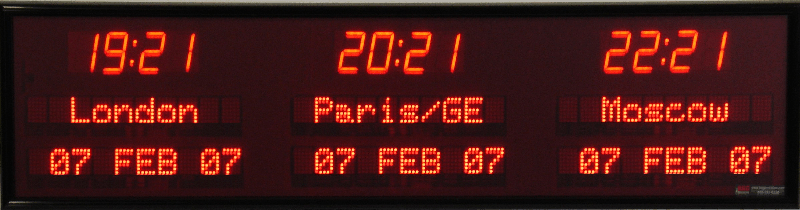

6673B

1.8"

1.2"

10.25

39.25

6673C

1.8"

1.2"

10.25

52.25

6673D

1.8"

1.2"

10.25

65.25

6673M

1.8"

1.2"

10.25

78.25

6673N

1.8"

1.2"

10.25

91.25

6673O

1.8"

1.2"

10.25

99.25

2.5" LEDs are visible up to 75 ft.

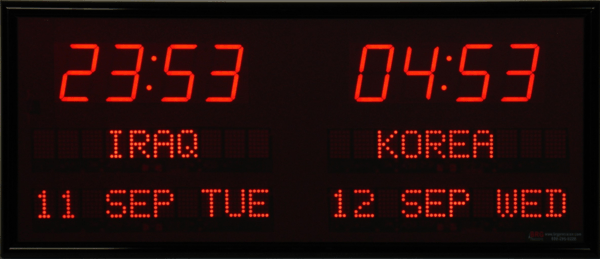

6673E

2.5"

1.2"

11.25

26.25

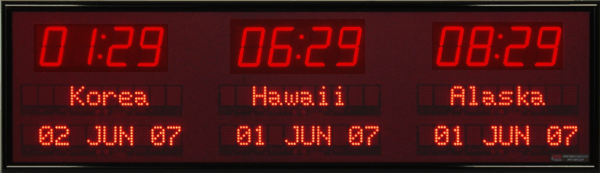

6673F

2.5"

1.2"

11.25

39.25

6673G

2.5"

1.2"

11.25

52.25

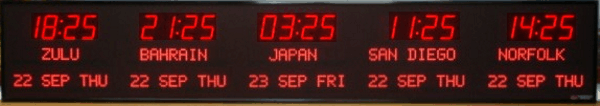

6673H

2.5"

1.2"

11.25

65.25

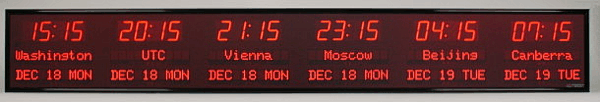

6673P

2.5"

1.2"

11.25

78.25

6673Q

2.5"

1.2"

11.25

91.25

6673R

2.5"

1.2"

11.25

99.25

4.0" LEDs are visible up to 100 ft.

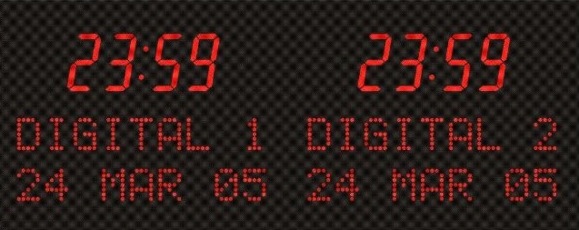

6673I

4.0"

2.0"

16.25

44.25

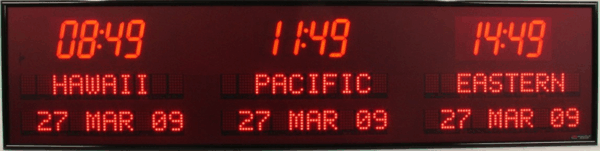

6673J

4.0"

2.0"

16.25

66.25

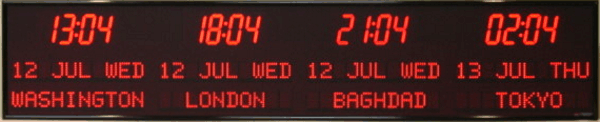

6673K

4.0"

2.0"

16.25

88.25

6673L

4.0"

2.0"

16.25

99.25

BRG Time Zone Clocks can be configured to display the following special information when specified at the time of purchase. Not all features can be included in every clock due to memory constraints or operational conflicts:

ATO Military Day Code (alpha displays only)
ISO8601 Work Week (alpha and/or numeric displays)
Julian Date (day of the year - alpha and/or numeric displays)
Week of the Year (alpha displays only)
Sunrise and/or Sunset Time (alpha and/or numeric displays)
Military Shipping Code A-Z, no I or O (alpha displays only)

Call 866-252-2704 or 316-530-8854

Online Orders

The Time Zone Clocks that are ordered online are built with the specifications below:

User Changeable Multi-Color bar segment LEDs for Time
User Changeable Multi-Color dot matrix LEDs for zone labels
10 or 20 Character Day & date Display
OCXO Oscillator that is accurate to +/- 1 second over 20 years
PC Interface: USB Adapter or Ethernet
IR Remote Control is standard, RF remote available as an option
12 ft power cord with U.S. plug
2 week lead time

Call 866-252-2704 or 316-530-8854

Download Spec Sheet

Color Options

Photo Below is a 6610L with user changeable multi-color LEDs
Change to red, blue, green, yellow, magenta, cyan or white any time you want

Additional Videos

Model Number	Number of Zones	Click on button to launch
All Models	Programmable Time Zone Page Flipping Example
6673C	4 Zone Clock with 1.8" blue bar segment LEDs for the Time and 1.2" red dot matrix LEDs for the date & zone labels
6673C	4 Zone Clock with 1.8" blue bar segment LEDs for the Time and 1.2" yellow dot matrix LEDs for the date & zone labels
6673C	4 Zone Clock with 1.8" green bar segment LEDs for the Time and 1.2" red dot matrix LEDs for the date & zone labels
6673D	5 Zone Clock with 1.8" blue bar segment LEDs for the Time and 1.2" blue dot matrix LEDs for the date & zone labels
6673D	5 Zone Clock with 1.8" blue bar segment LEDs for the Time and 1.2" yellow dot matrix LEDs for the date & zone labels
6673E	2 Zone Clock with 2.5 " green bar segment LEDs for the Time and 1.2" yellow dot matrix LEDs for the date & zone labels
6673J	3 Zone Clock with 4.0" blue bar segment LEDs for the Time and 1.2" red dot matrix LEDs for the date & zone labels
6673L	5 Zone Clock with 4.0" green bar segment LEDs for the Time and yellow 2.0" dot matrix LEDs for the date & zone labels
6673M	6 Zone Clock with 1.8" red bar segment LEDs for the Time and green 1.2" dot matrix LEDs for the date & zone labels
6673M	6 Zone Clock with 1.8" red bar segment LEDs for the Time and yellow 1.2" dot matrix LEDs for the date & zone labels
6673O	8 Zone Clock with 1.8" red bar segment LEDs for the Time and green 1.2" dot matrix LEDs for the date & zone labels
6673P	6 Zone Clock with 2.5" blue bar segment LEDs for the Time and 1.2" yellow dot matrix LEDs for the date & zone labels
6673P	6 Zone Clock with 2.5" green bar segment LEDs for the time and 1.2" red dot matrix LEDs for the date & zone labels
6673P	6 Zone Clock with standard 2.5" red bar segment LEDs for the Time, 1.2" green dot matrix LEDs for the zone labels and 1.2" yellow dot matrix LEDs for the date
6673R	8 Zone Clock with 2.5 " red bar segment LEDs for the Time and green 1.2" dot matrix LEDs for the date & zone labels
