BRG Take-A-Number Queue Management System



The BRG Take-a-Number System is like no other.  This highly flexible system includes a user-changeable-color LED display that can be re-configured to meet your specific needs.

The user-configurable displays support 100 or 1000 waiting customers, 0 to 64 service windows, no alert tone, alert tone only, or alert tone with voice announcement, with a user changeable color LED display.  The ticket number count is maintained during power outages. The U.S. Government approved long-range wireless remote control, with 10 year battery, greatly simplifies installation and operation.  Any number of wall displays or combination of digit sizes may be deployed.  Available packages include:  user-changeable color LED display, ticket dispenser with tickets, floor or tabletop stand, and wireless remote control.  Made in the USA with a full one year warranty.

How the BRG Queue Management System Works

  • Customer obtains a ticket when entering the waiting area
  • Employee at service window presses the Next button on the wireless remote control.  The system supports up to 64 service windows
  • The wall display(s) sounds an alert tone, increments the ticket count, and announces the ticket number.  If the system is configured for multiple service windows, the service window number is also displayed and announced.
  • If the customer does not appear at the window in a short time, the employee at the window may press the Repeat button on the remote control to repeat the precious announcement, for the respective service window.  The Back button may be used to decrement the ticket count.
  • If the customer does not appear at the window, the employee presses the Next Button to announce the next ticket number and update the display.

Call 866-252-2704 or 316-530-8854

Operation:

Pressing the window remote’s Next button increments the ticket count, and sounds an alert tone and/or voice announcement.  Pressing the Back button decrements the count without an alert sound.  Pressing the Repeat button repeats the announcement for the remote control pressed.  The Take a number display may be reconfigured at any time to one of eight standard configurations.

Features:

  • 8 in 1 operation – eight user configurable operating modes
  • Bar segment LEDs are easier to read than older dot-type displays
  • Plug-and-Play, no complicated network, configuration or complicated wiring
  • Simple installation with no technical skills required.
  • Simple ticket dispenser, no expensive printer to malfunction, no paper jams
  • User changeable LED display color scheme
  • Anti-glare lens allows viewing under most lighting conditions
  • Four selectable channels to avoid interference between two systems
  • User selectable speech announcement and/or audio tone/chime
  • Select Language for Voice Announcement (English only, Spanish only or English/Spanish Combination)
  • The display changes color with each announcement.
  • History showing the last four announcements is displayed
  • Sturdy industrial, U.S. Government approved, wireless remote control
  • Wireless remote operation to increment, decrement or repeat the count
  • Wireless remote operates up to 10 years between battery changes
  • No wiring between window button and wall displays
  • Wall displays include control buttons to increment or decrement the count
  • Simple configuration and easy to use
  • The count and window number is maintained during power outages
  • Repeat audio with the correct window number from the last 25 transactions
  • Alert chime can be configured to sound before the voice announcement
  • Adjustable display intensity
  • Simultaneous button presses are buffered and managed
  • Separate adjustable alert chime/tone and voice audio volume up to 102 dB.
  • A line-level audio jack is available for connecting the display to the building's PA system
  • Any number of LED wall displays may be used
  • Wall displays - 2, 4 or 6 digit with 4” or 8" high digits (black ABS enclosure BRG44) (Aluminum Frame BRGQ64, BRGQ28, BRGQ48 & BRGQ68)
  • Configure for 2 or 3 digit tickets and up to 64 service windows
  • Displays can be reconfigured using the buttons on the display or the remote control
  • Additional displays mirror the primary display, including audio
  • Displays are configurable to operate as Single, Primary or Secondary Single mode.
  • 30 day money back guarantee
  • Free toll-free technical support.

Available Options:

  • Wall or Desktop displays – 2, 4 or 6 digits, with 4” or 8” digits, Black Plastic enclosure or black aluminum frame depending on the model
  • Double sided ceiling or hallway displays
  • Additional wireless remote controls, including batteries
  • Ticket dispenser with floor stand and sign
  • Ticket dispenser, no stand or sign

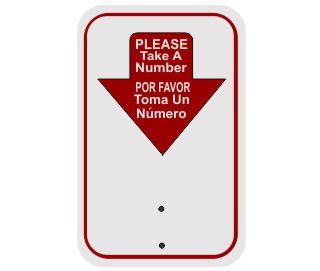

  • Sign only (English, Spanish or English & Spanish)
  • Additional secondary 4” & 8" LED wall displays with audio
  • 2 digit paper ticket rolls
  • 3 digit paper ticket rolls

Call 866-252-2704 or 316-530-8854

Configurations

The BRGQ44P1 & P2 ships with the Configuration 7 as the default.

Included instructions, will walk you through changing the display to one to the following configurations.

When placing an order, be sure to order the correct paper ticket roll to match the configuration that you are going to use,  Configuration 1, 3, 5 & 7 use 2 digit tickets and Configuration 2, 4, 6 & 8 Use 3 Digit tickets.

Configuration 1
  • Up to 100 waiting customers
  • Audio Tone Only


Configuration 2
  • Up to 1000 waiting customers
  • Audio Tone Only


Configuration 3
  • Up to 100 waiting customers
  • 64 Service Windows
  • Audio Tone Only


Configuration 4
  • Up to 1000 waiting customers
  • 10 Service Windows
  • Audio Tone Only

Configuration 5
  • Up to 100 waiting customers
  • Audio Tone & Voice Announcement


Configuration 6
  • Up to 1000 waiting customers
  • Audio Tone & Voice Announcement


Configuration 7
(Default Configuration from Factory)
  • Up to 100 waiting customers
  • 64 Service Windows
  • Audio Tone & Voice Announcement


Configuration 8
  • Up to 1000 waiting customers
  • 10 Service Windows
  • Audio Tone & Voice Announcement


Configuration 9
(Only available on Models BRGQ64 & BRGQ68)


  • Up to 1000 waiting customers
  • 64 Service Windows
  • Audio Tone Announcement Only
Configuration 10
Only available on Models BRGQ64 & BRGQ68)
(Default Configuration from Factory for the BRGQ64 & BRGQ68 Models)
  • Up to 1000 waiting customers
  • 64 Service Windows
  • Audio Tone & Voice Announcement


Configuration 11
(Only available on Models BRGQ44 & BRGQ28)
Ideal for a single line of people waiting to be directed to a window (no ticket dispenser needed).  The wireless window remote control send the respective window number to the wall display, which sounds an alert tone and announces the window number in English, Spanish or both.

  • No ticket dispenser needed
  • Displays up to 64 Service Windows
  • Audio Tone & Voice Announcement of next available window in English, Spanish or Both
  • Choice of Labels (Window, Station or Counter)
  • Secondary Displays available
  • Select wither 4" or 8" LEDs

Packages

BRGQ44P1

  • User changeable multi-color 4-Digit, 4" LED display w/ power adapter
  • Reversible sign for display
  • Wireless Remote Control
  • Ticket dispenser w/ adjustable floor stand
  • Ticket Roll
  • Operates in Configuration 1 - 8 & 11
  • LED Display: 6.13"H x 17"W x 2.25"D

$658.90


BRGQ44P2

  • User changeable multi-color 4-Digit, 4" LED display w/ power adapter
  • Reversible sign for display
  • Wireless Remote Control
  • Ticket dispenser w/ adjustable countertop stand
  • Ticket Roll
  • Operates in Configuration 1 - 8 & 11
  • LED Display: 6.13"H x 17"W x 2.25"D

$603.90


BRGQ64P1

  • User changeable multi-color 6-Digit, 4" LED display
  • "Ticket Window" Label for display
  • 8 ft. power cord
  • Wireless Remote Control
  • Operates in Configuration 9 & 10
  • Ticket dispenser w/ adjustable floor stand
  • Ticket Roll
  • LED Display: 10.25"H x 24.25"W x 3.25"D

$768.90


BRGQ64P2

  • User changeable multi-color 6-Digit, 4" LED display
  • "Ticket Window" Label for display
  • 8 ft. power cord
  • Wireless Remote Control
  • Operates in Configuration 9 & 10
  • Ticket dispenser w/ adjustable countertop stand
  • Ticket Roll
  • LED Display: 10.25"H x 24.25"W x 3.25"D

$713.90


BRGQ28P1



  • User changeable multi-color 2-Digit, 8" LED display
  • "Now Serving" Label
  • 8 ft. power cord
  • Wireless Remote Control
  • Ticket dispenser w/ adjustable floor stand
  • 2 Digit Ticket Roll
  • Operates in Configuration 1, 5 or 11 Only
  • LED Display: 17.25"H x 17.25"W x 3.25"D

$768.90


BRGQ28P2


  • User changeable multi-color 2-Digit, 8" LED display
  • "Now Serving" Label
  • 8 ft. power cord
  • Wireless Remote Control
  • Ticket dispenser w/ adjustable countertop stand
  • 2 Digit Ticket Roll
  • Operates in Configuration 1, 5 or 11 Only
  • LED Display: 17.25"H x 17.25"W x 3.25"D

$713.90


BRGQ48P1

  • User changeable multi-color 4-Digit, 8" LED display
  • Two Labels for LED Display "Now Serving" & "Ticket Window"
  • 8 ft. power cord
  • Wireless Remote Control
  • Ticket dispenser w/ adjustable floor stand
  • Ticket Roll
  • Operates in Configuration 1 - 8
  • LED Display: 13.25"H x 36.25"W x 3.25"D

$878.90


BRGQ48P2

  • User changeable multi-color 4-Digit, 8" LED display
  • Two Labels for LED Display "Now Serving" & "Ticket Window"
  • 8 ft. power cord
  • Wireless Remote Control
  • Ticket dispenser w/ adjustable countertop stand
  • Ticket Roll
  • Operates in Configuration 1 - 8
  • LED Display: 13.25"H x 36.25"W x 3.25"D

$823.90


Contact our helpful sales associates at 800-295-0220 or 316-788-2000
BRGQ68P1

  • User changeable multi-color 6-Digit, 8" LED display
  • "Ticket Window" Label for display
  • 8 ft. power cord
  • Wireless Remote Control
  • Operates in Configuration 9 & 10
  • Ticket dispenser w/ adjustable floor stand
  • Ticket Roll
  • LED Display: 13.25"H x 50.25"W x 3.25"D

$988.90


BRGQ68P2

  • User changeable multi-color 6-Digit, 8" LED display
  • "Ticket Window" Label for display
  • 8 ft. power cord
  • Wireless Remote Control
  • Operates in Configuration 9 & 10
  • Ticket dispenser w/ adjustable countertop stand
  • Ticket Roll
  • LED Display: 13.25"H x 50.25"W x 3.25"D

$933.90


Options

BRGQ44 - Secondary Display

This is a secondary display that synchronizes to your main Take-A-Number LED Ticket Display.  You can add as many of these secondary displays as you want.  When a new number is announced, the main display and all the secondary displays change the number and make the audio announcement at the same time.

Features:

  • Synchronizes to the main display
  • The number of secondary displays is unlimited
  • Secondary displays and audio mirror the master display
  • The display includes a reversible “Ticket Window” / “Now Serving” label and power adapter
  • 4.0" user changeable multi-color bar segment LEDs allow you to customize the LED colors
  • Operates in Configuration 1 - 8 & 11
  • 6.13"H x 17"W x 2.25"D

$438.90


BRGQ64 - Secondary Display

This is a secondary display that synchronizes to your main Take-A-Number LED Ticket Display.  You can add as many of these secondary displays as you want.  When a new number is announced, the main display and all the secondary displays change the number and make the audio announcement at the same time.

Features:

  • Synchronizes to the main display
  • The number of secondary displays is unlimited
  • Secondary displays and audio mirror the master display
  • "Ticket Window" Label for display
  • 8 ft. power cord
  • 4.0" user changeable multi-color bar segment LEDs allow you to customize the LED colors
  • Operates in Configuration 9 & 10
  • 10.25"H x 24.25"W x 3.25"D

$548.90


BRGQ28 - Secondary Display

This is a secondary display that synchronizes to your main Take-A-Number LED Ticket Display.  You can add as many of these secondary displays as you want.  When a new number is announced, the main display and all the secondary displays change the number and make the audio announcement at the same time.

Features:

  • Synchronizes to the main display
  • The number of secondary displays is unlimited
  • Secondary displays and audio mirror the master display
  • "Now Serving" Label
  • 8 ft. power cord
  • 8.0" user changeable multi-color bar segment LEDs allow you to customize the LED colors
  • Operates in Configuration 1, 5 & 11 Only
  • 17.25"H x 17.25"W x 3.25"D


$548.90



BRGQ48 - Secondary Display

This is a secondary display that synchronizes to your main Take-A-Number LED Ticket Display.  You can add as many of these secondary displays as you want.  When a new number is announced, the main display and all the secondary displays change the number and make the audio announcement at the same time.

Features:

  • Synchronizes to the main display
  • The number of secondary displays is unlimited
  • Secondary displays and audio mirror the master display
  • Two Labels for LED Display "Now Serving" & "Ticket Window"l
  • 8 ft. power cord
  • 8.0" user changeable multi-color bar segment LEDs allow you to customize the LED colors
  • Operates in Configuration 1 - 8
  • 13.25"H x 36.25"W x 3.25"D

$658.90


BRGQ68 - Secondary Display

This is a secondary display that synchronizes to your main Take-A-Number LED Ticket Display.  You can add as many of these secondary displays as you want.  When a new number is announced, the main display and all the secondary displays change the number and make the audio announcement at the same time.

Features:

  • Synchronizes to the main display
  • The number of secondary displays is unlimited
  • Secondary displays and audio mirror the master display
  • "Ticket Window" Label for display
  • 8 ft. power cord
  • 8.0" user changeable multi-color bar segment LEDs allow you to customize the LED colors
  • Operates in Configuration 9 & 10
  • 13.25"H x 50.25"W x 3.25"D


$768.90




Not sure which model fits your need? Click on the image above for a model comparison chart.





BRGQWR - Wireless Remote Control


Use any number of these remote controls with your take-a-number system.  If you choose to use your system with configuration 3 or 7, these remote controls can be programed to show up to 64 different service window numbers.  If you choose to use your system with configuration 4 or 8, these remote controls can be programed to show up to 10 different service windows numbers.

Features:

  • Ergonomic hand held design
  • Easy to use
  • 4 buttons (Repeat Audio, Next, Back, Power/Menu)
  • Up to 10 years between battery changes
  • Instructions are on the back of the remote
  • Auto power off, so there is no unnecessary battery drain
  • Uses 2 AA lithium batteries\
  • 2.625" W x 4.625" H x 1.0" D

$97.90


BRGQWSDD - Take-A-Number Service Window Sign with Countertop Stand

The service window number sign comes with an adjustable Countertop Stand.  Allows customers to easily identify Service window numbers.




Features:

  • Arial Bold Font, 500 pt Window Number
  • Black acrylic sign
    7.88"W x 7.88"H x 0.125"D
  • Pre-drilled mounting holes
  • Countertop adjustable base
  • Adjusts 3" vertically
  • Simple Assembly
  • Move to new location easily

Please Specify number(s) needed when ordering.

$29.70

Contact our helpful sales associates at 800-295-0220 or 316-788-2000
BRGQDFS - Ticket Dispenser w/Floor stand

Take-A-Number ticket dispenser and adjustable floor stand.

Features:

  • Dispenses paper tickets
  • Free standing adjustable base
  • Adjusts from 40" to 66"
  • Simple Assembly
  • Move to new location easily

$130.90


BRGQDDS - Ticket Dispenser w/Table Top Stand

Take-A-Number ticket dispenser and adjustable countertop stand.

Features:

  • Dispenses paper tickets
  • Countertop adjustable base
  • Adjusts from 10" to 13"
  • Simple Assembly
  • Move to new location easily

$75.90


BRGQTD - Ticket Dispenser


Replacement Take-A-Number Dispenser

Features:

  • Holds one roll of paper tickets
  • Easy to use



$53.90


BRGQLBL - Reversible Display label


Replacement reversible sign for the BRGQ44 Model

Features:

  • Hangs behind your BRG Take-A-Number LED Display
  • Reversible, so you can use it with any of the eight configurations

$8.79


Contact our helpful sales associates at 800-295-0220 or 316-788-2000
BRGQSEN - English Sign

Replacement sign to fit a BRG Take-A-Ticket Dispenser Stand that is in English Only

Features:

  • "Please Take a Number" in English Only
  • Dimensions: 7.5"W x 11.813"H

$8.80

BRGQSSP - Spanish Sign

Replacement sign to fit a BRG Take-A-Ticket Dispenser Stand that is in Spanish Only

Features:

  • "Please Take a Number" in Spanish Only
  • Dimensions: 7.5"W x 11.813"H

$8.80

Contact our helpful sales associates at 800-295-0220 or 316-788-2000
BRGQSES - English & Spanish Sign

Replacement sign to fit a BRG Take-A-Ticket Dispenser Stand that is in English & Spanish

Features:

  • "Please Take a Number" in English & Spanish
  • Dimensions: 7.5"W x 11.813"







$8.80

BRGQWS - Take-A-Number Service Window Sign

The service window mounts to either a adjustable floor mount stand or to the table top mount stand (available separately)

Features:

  • Arial Bold Font, 500 pt window number
  • Black acrylic sign
    7.88"W x 7.88"H x 0.125"D
  • Pre-drilled mounting holes.

Please Specify number(s) needed when ordering.

$8.80

BRGQTR2 - 1 Roll of Two Digit Tickets (1,000 Tickets)

This is for one roll (1000 tickets) of 2 digit paper tickets to fit your your Take-A-Number ticket dispenser.  These rolls are designed for BRGQ44 Configurations 1, 3, 5 & 7.

Features:

  • Up to 100 waiting customers
  • Available in single rolls

$8.79

BRGQTR3 - 1 Roll of Three Digit Tickets (1,000 Tickets)

This is for one roll (1000 tickets) of 3 digit paper tickets to fit your your Take-A-Number ticket dispenser.  These rolls are designed for BRGQ44 Configurations 2, 4, 6 & 8.

Features:

  • Up to 1000 waiting customers
  • Available in single rolls

$8.79

BRGQDF - Floor stand for Dispenser


This is for one Take-A-Number adjustable floor stand.

Features:

  • Free standing adjustable base
  • Adjusts from 40" to 66"
  • Simple Assembly
  • Move to new location easily

$75.90

BRGQDD - Countertop Stand for Dispenser


This is for one Take-A-Number adjustable countertop stand.

Features:

  • Countertop adjustable base
  • Adjusts from 10" to 13"
  • Simple Assembly
  • Move to new location easily

$20.90

Installation and assembly videos are available in the Tech Support Video Section Click Here


Call 866-252-2704 or 316-530-8854


 Our Product Line

Copyright 2023 BRG Precision Products - All Rights Reserved                         600 River Street Derby, Kansas 67037  Phone 866-252-2704 or 316-530-8854 Fax 316.788.7080
                                                                                                                              GSA Contract # GS-02F-0030U

Have a Question?
Need Assistance?






Or Call 800-295-0220
