Style 664
Time Zone Display Style 664

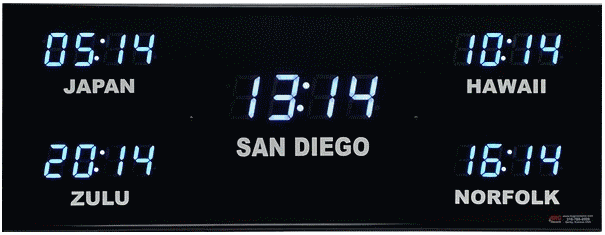

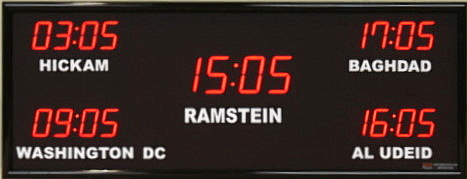

 Model 664A with Sample Zones |

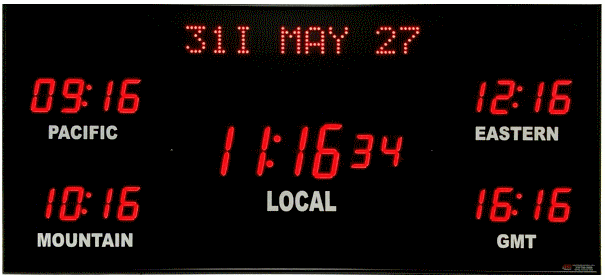

 Model 664E-B25R with the colored LED option and Sample Zones |
The 664 series time zone displays have a large center time display surrounded by smaller perimeter time displays. Every display includes a high accuracy crystal oscillator and an infrared remote control. Models 664D through 664F include a 10 character 2 inch alpha numeric date. Models 664G through 664I includes a 20 character 2 inch alpha numeric date. The date can be arranged in any format and can include Julian dates. For instance, you could have 14 APR 08 or FRI APR 14.
| Model | Photo | Zones | LED Color | Peri-Meter Disp. |
Center Disp. |
Label Size White Vinyl | Viewing Distance |
H | W | D | GSA Item |
| 664A | Yes | 5 | Red | 1.8" | 2.5" | 0.75"/1.0" | 40-75 ft. | 12.25 | 32.25 | 2.25 | Yes |

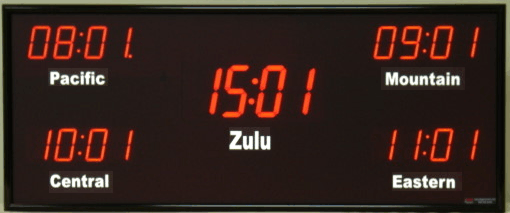

| 664B | Yes | 5 | Red | 2.5" | 4.0" | 1"/1.5" | 75-100 ft. | 16.25 | 39.25 | 2.25 | Yes |
| 664C | Yes | 5 | Red | 4.0" | 4.0" | 1.5" | 100 ft. | 20.25 | 45.25 | 2.25 | Yes |
| No dates on above models | |||||||||||

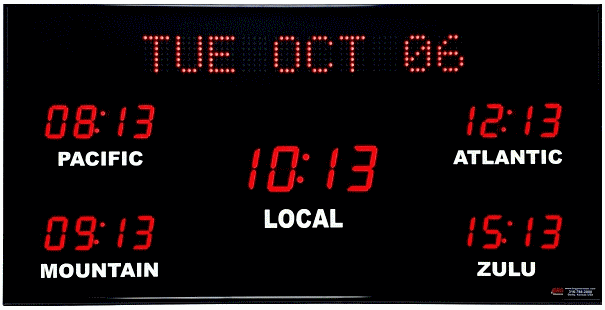

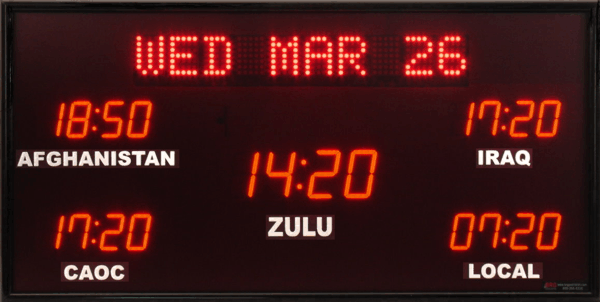

| 664D | Yes | 5 | Red | 1.8" | 2.5" | 0.75"/1.0" | 40-75 ft. | 12.25 | 32.25 | 2.25 | No |
| 664E | Yes | 5 | Red | 2.5" | 4.0" | 1"/1.5" | 75-100 ft. | 16.25 | 39.25 | 2.25 | No |

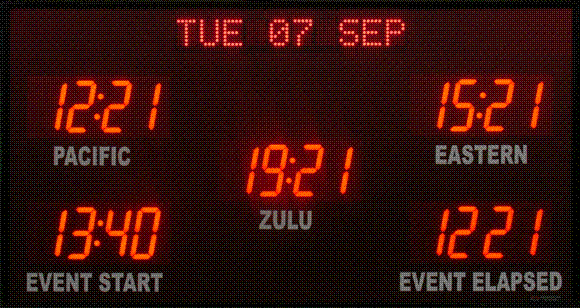

| 664F | Yes | 5 | Red | 4.0" | 4.0" | 1.5" | 100 ft. | 20.25 | 45.25 | 2.25 | No |

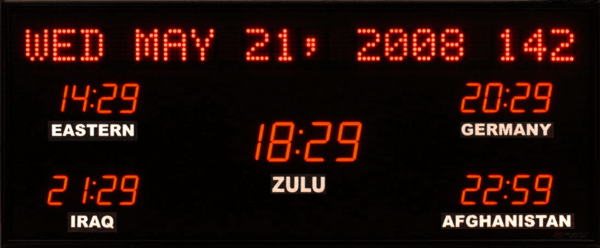

| 664G | Yes | 5 | Red | 1.8" | 2.5" | 0.75"/1.0" | 40-75 ft. | 12.25 | 32.25 | 2.25 | No |
| 664H | n/a | 5 | Red | 2.5" | 4.0" | 1"/1.5" | 75-100 ft. | 16.25 | 39.25 | 2.25 | No |
| 664I | n/a | 2 | Red | 4.0" | 4.0" | 1.5" | 100 ft. | 20.25 | 45.25 | 2.25 | No |
| Twenty character 2 inch dates on above models | |||||||||||
