Style 663
Time Zone Display Style 663
Model 663C with Sample Zones
The 663 series time zone displays have a top row of time LED's and a bottom row is numeric date LED's with white vinyl labels. Every display includes a high accuracy crystal oscillator and an infrared remote control.
| Model | Photo | Zones | LED Color | Time Displays | Label Size White Vinyl | Viewing Distance |
H | W | D | GSA Item |

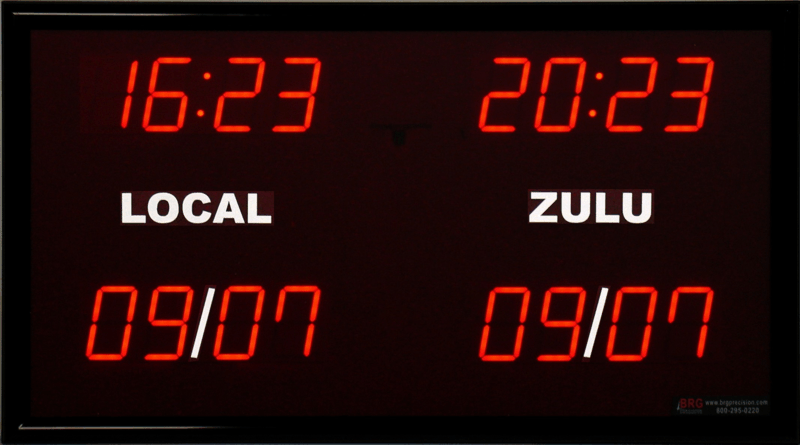

| 663A | Yes | 2 | Red | 1.8" | 0.75" | 40 ft. | 11.25 | 20.25 | 2.25 | Yes |

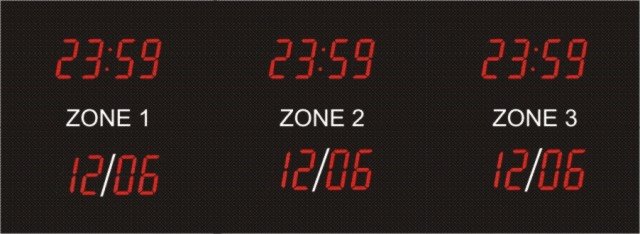

| 663B | Yes | 3 | Red | 1.8" | 0.75" | 40 ft. | 11.25 | 30.25 | 2.25 | Yes |
| 663C | Yes | 4 | Red | 1.8" | 0.75" | 40 ft. | 11.25 | 40.25 | 2.25 | Yes |

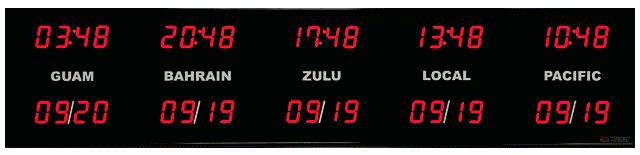

| 663D | Yes | 5 | Red | 1.8" | 0.75" | 40 ft. | 11.25 | 50.25 | 2.25 | Yes |

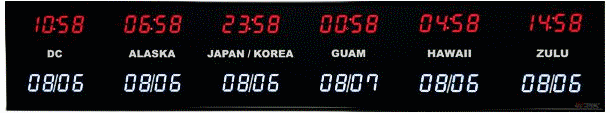

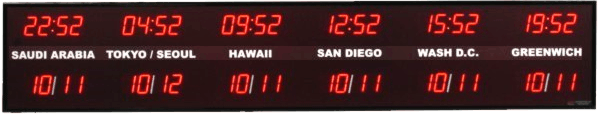

| 663M | Yes | 6 | Red | 1.8" | 0.75" | 40 ft. | 11.25 | 60.25 | 2.25 | Yes |

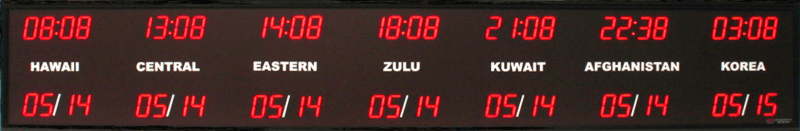

| 663N | Yes | 7 | Red | 1.8" | 0.75" | 40 ft. | 11.25 | 70.25 | 2.25 | Yes |

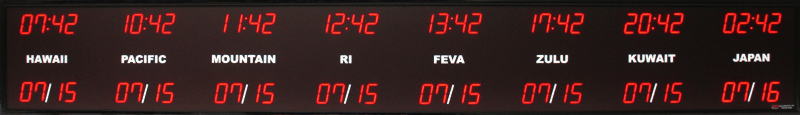

| 663O | Yes | 8 | Red | 1.8" | 0.75" | 40 ft. | 11.25 | 80.25 | 2.25 | Yes |
| 663P | n/a | 9 | Red | 1.8" | 0.75" | 40 ft. | 11.25 | 90.25 | 2.25 | Yes |
| 663Q | Yes | 10 | Red | 1.8" | 0.75" | 40 ft. | 11.25 | 96.25 | 2.25 | Yes |

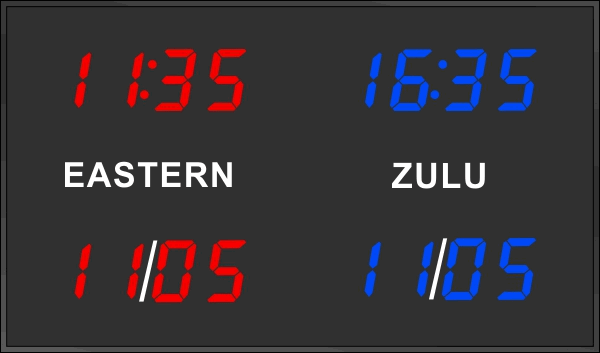

| 663E | Yes | 2 | Red | 2.5" | 1.00" | 75 ft. | 14.25 | 24.25 | 2.25 | Yes |

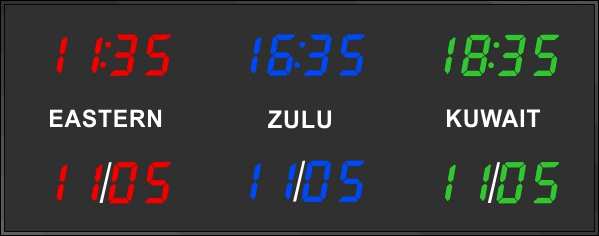

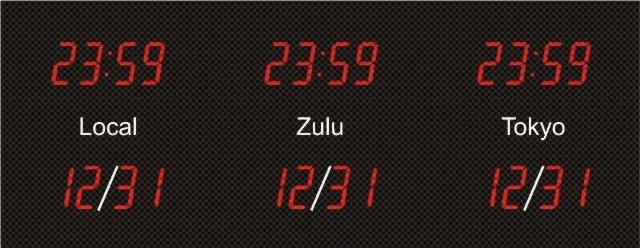

| 663F | Yes | 3 | Red | 2.5" | 1.00" | 75 ft. | 14.25 | 36.25 | 2.25 | Yes |

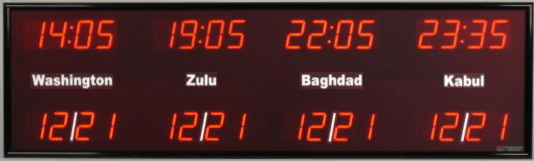

| 663G | Yes | 4 | Red | 2.5" | 1.00" | 75 ft. | 14.25 | 48.25 | 2.25 | Yes |

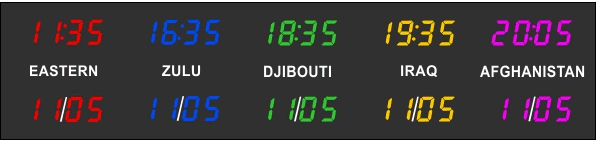

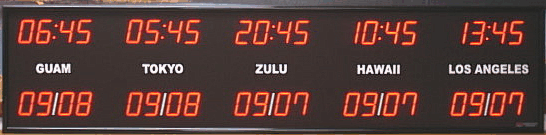

| 663H | Yes | 5 | Red | 2.5" | 1.00" | 75 ft. | 14.25 | 60.25 | 2.25 | Yes |

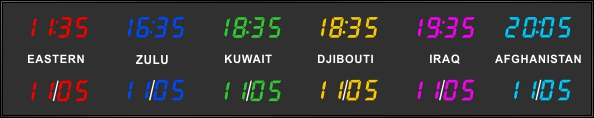

| 663R | n/a | 6 | Red | 2.5" | 1.00" | 75 ft. | 14.25 | 72.25 | 2.25 | Yes |

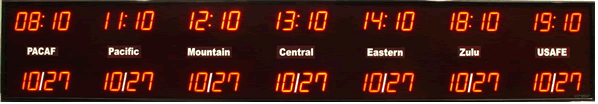

| 663S | Yes | 7 | Red | 2.5" | 1.00" | 75 ft. | 14.25 | 84.25 | 2.25 | Yes |
| 663T | Yes | 8 | Red | 2.5" | 1.00" | 75 ft. | 14.25 | 96.25 | 2.25 | Yes |

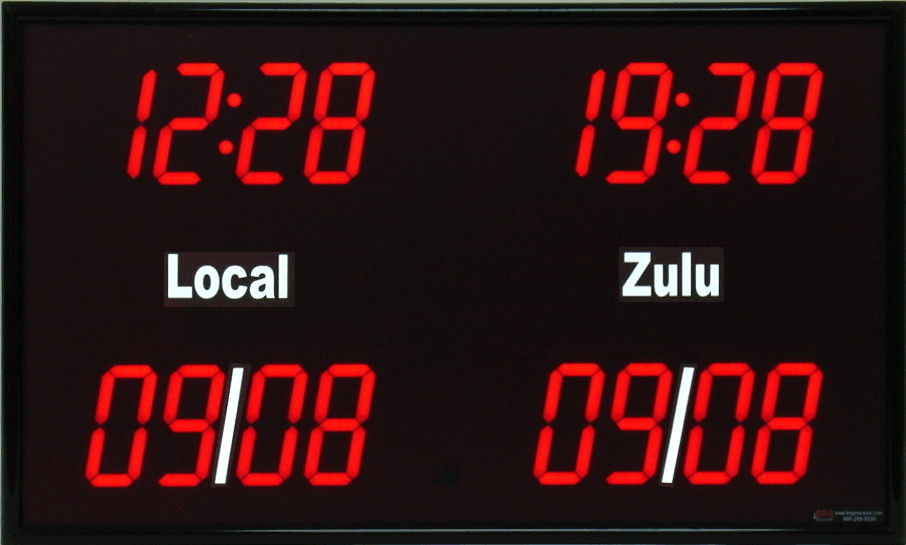

| 663I | Yes | 2 | Red | 4.0" | 1.50" | 100 ft. | 18.25 | 30.25 | 2.25 | Yes |

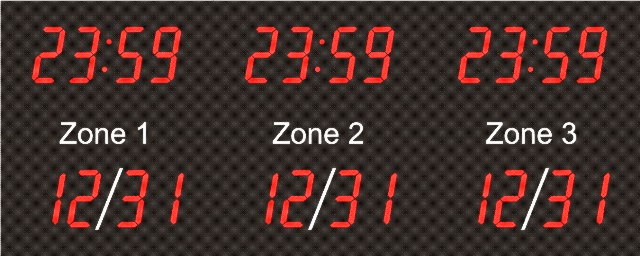

| 663J | Yes | 3 | Red | 4.0" | 1.50" | 100 ft. | 18.25 | 45.25 | 2.25 | Yes |

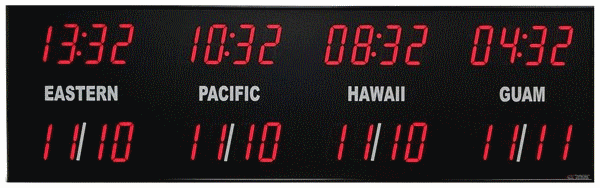

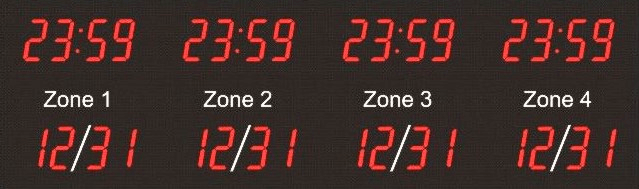

| 663K | Yes | 4 | Red | 4.0" | 1.50" | 100 ft. | 18.25 | 60.25 | 2.25 | Yes |

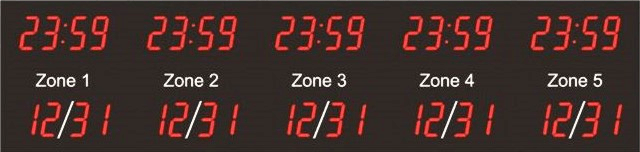

| 663L | Yes | 5 | Red | 4.0" | 1.50" | 100 ft. | 18.25 | 75.25 | 2.25 | Yes |

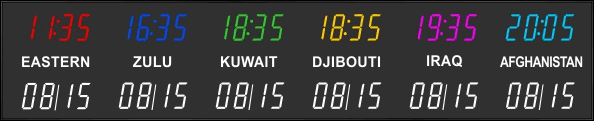

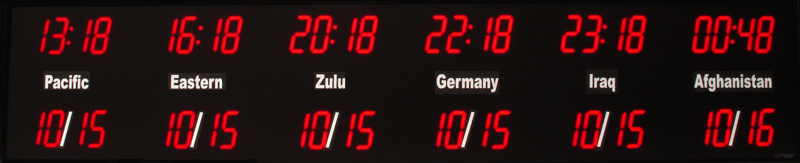

| 663U | Yes | 6 | Red | 4.0" | 1.50" | 100 ft. | 18.25 | 90.25 | 2.25 | Yes |

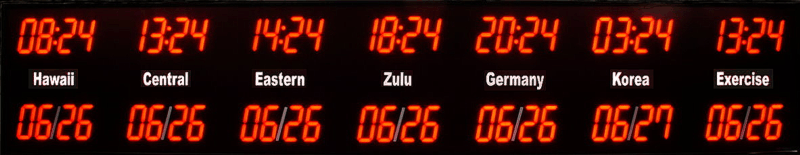

| 663V | Yes | 7 | Red | 4.0" | 1.50" | 100 ft. | 18.25 | 96.25 | 2.25 | Yes |
