Style 6614
Time Zone Display Style 6614
Model 6614A with Sample Zones
The 6614 series time zone displays have five bar segment time displays with ten character dot matrix digital zone labels. The digital zone labels can hold any ASCII text string and is independent of the time zone parameters. The unit can display up to 20 time zones even if there is less physical displays by paging through the time zones. Models 6614D through 6614F include a 10 character 2 inch alpha-numeric date. Models 6614G through 6614I include a 20 character 2 inch alpha-numeric date but can only show up to 15 time zones. The date can be arranged in any format and can include Julian dates. For instance, you could have 14 APR 09 or FRI APR 14. Every display includes a high accuracy crystal oscillator, infrared remote control and your choice of Ethernet, USB or RS232 interface for time zone parameter control.
| Model | Photo | Zones | LED Clr. | Peri-meter Disp. | Peri-meter Lbls. | Cntr. Disp. | Cntr. Labels | Max Pgs. | Viewing Distance | H | W | D | GSA Item |
| 6614A | Yes | 5 | Red | 1.8" | 1.2" | 2.5" | .1.2" | 4 | 40-75 ft. | 14.25 | 39.25 | 2.25 | Yes |

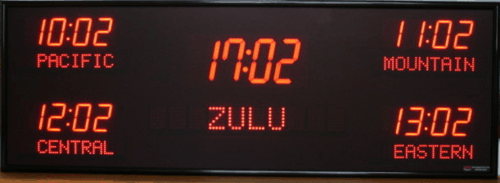

| 6614B | Yes | 5 | Red | 2.5" | 1.2" | 4.0" | 2.0" | 4 | 75-100 ft. | 16.25 | 46.25 | 2.25 | Yes |

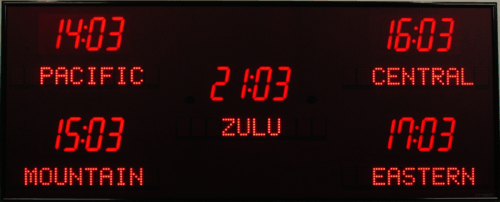

| 6614C | Yes | 5 | Red | 4.0" | 2.0" | 4.0" | 2.0" |
4 | 100 ft. | 24.25 | 60.25 | 2.25 | Yes |
| No dates on above models | |||||||||||||
| 6614D | n/a | 5 | Red | 1.8" | 1.2" | 2.5" | .1.2" | 4 | 40-75 ft. | 18.25 | 39.25 | 2.25 | No |
| 6614E | n/a | 5 | Red | 2.5" | 1.2" | 4.0" | 2.0" | 4 | 75-100 ft. | 20.25 | 46.25 | 2.25 | No |

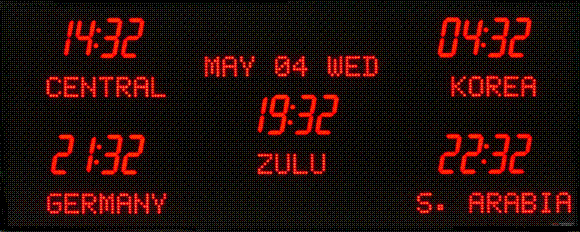

| 6614F | Yes | 5 | Red | 4.0" | 2.0" | 4.0" | 2.0" |
4 | 100 ft. | 24.25 | 60.25 | 2.25 | No |
| 6614G | n/a | 5 | Red | 1.8" | 1.2" | 2.5" | .1.2" | 3 | 40-75 ft. | 18.25 | 39.25 | 2.25 | No |

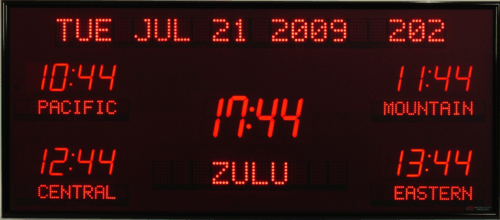

| 6614H | Yes | 5 | Red | 2.5" | 1.2" | 4.0" | 2.0" | 3 | 75-100 ft. | 20.25 | 46.25 | 2.25 | No |
| 6614I | n/a | 5 | Red | 4.0" | 2.0" | 4.0" | 2.0" |
3 | 100 ft. | 24.25 | 60.25 | 2.25 | No |
| Twenty character 2 inch dates on above models | |||||||||||||
