Style 3618
Time Zone Display Style 3618

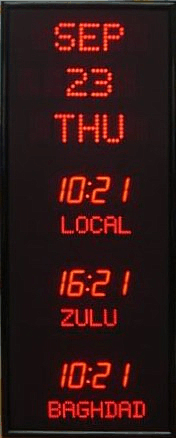

 Model 3618B with Sample Zones |
The 3618 series time zone displays have bar segment time displays with ten character dot matrix digital zone labels below and a dot matrix alpha-numeric date above. The digital zone labels can hold any ASCII text string and is independent of the time zone parameters. The date can be configured to display in many different formats. The unit can display up to 20 time zones even if there is less physical displays by paging through the time zones. Every display includes a high accuracy crystal oscillator, infrared remote control and your choice of Ethernet, USB or RS232 interface for time zone parameter control. |
| Model | Photo | Zones | LED Color | Time Display | Date Display | Digital Zone Label | Viewing Distance | H | W | D | GSA Item |

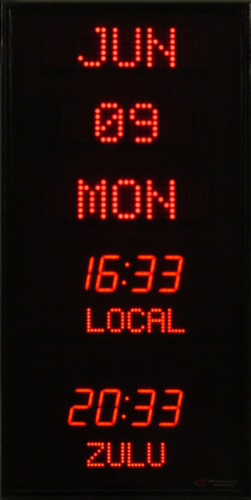

| 3618A | Yes | 2 | Red | 1.8" | 2.0" | 1.2" | 40 ft. | 26.25 | 15.25 | 2.25 | Yes |
| 3618B | Yes | 3 | Red | 1.8" | 2.0" | 1.2" | 40 ft. | 33.25 | 15.25 | 2.25 | Yes |
| 3618C | Yes | 4 | Red | 1.8" | 2.0" | 1.2" | 40 ft. | 40.25 | 15.25 | 2.25 | Yes |
| 3618D | Yes | 5 | Red | 1.8" | 2.0" | 1.2" | 40 ft. | 47.25 | 15.25 | 2.25 | Yes |
| 3618E | Yes | 6 | Red | 1.8" | 2.0" | 1.2" | 40 ft. | 54.25 | 15.25 | 2.25 | Yes |
| 3618F | n/a | 2 | Red | 2.5" | 2.0" | 1.2" | 75 ft. | 28.25 | 15.25 | 2.25 | Yes |
| 3618G | Yes | 3 | Red | 2.5" | 2.0" | 1.2" | 75 ft. | 36.25 | 15.25 | 2.25 | Yes |
| 3618H | Yes | 4 | Red | 2.5" | 2.0" | 1.2" | 75 ft. | 44.25 | 15.25 | 2.25 | Yes |
| 3618I | Yes | 5 | Red | 2.5" | 2.0" | 1.2" | 75 ft. | 52.25 | 15.25 | 2.25 | Yes |
| 3618J | n/a | 6 | Red | 2.5" | 2.0" | 1.2" | 75 ft. | 60.25 | 15.25 | 2.25 | Yes |
