Style 6613
Time Zone Display Style 6613
Model 6613O with Sample Zones
The 6613 series time zone displays have bar segment time and date displays with a ten character dot matrix digital zone label between. The digital zone labels can hold any ASCII text string and is independent of the time zone parameters. The unit can display up to 12 time zones even if there is less physical displays by paging through the time zones. A two time zone display can have six pages of time zone information. A four time zone display can have three pages of time zone information. Every display includes a high accuracy crystal oscillator, infrared remote control and your choice of Ethernet, USB or RS232 interface for time zone parameter control.
| Model | Photo | Zones | LED Color | Time/ Date Disp. | Label Disp. | Max. Pages | Viewing Distance | H | W | D | GSA Item |
| 6613A | n/a | 2 | Red | 1.8" | 1.2" | 6 | 40 ft. | 11.25 | 26.25 | 2.25 | Yes |

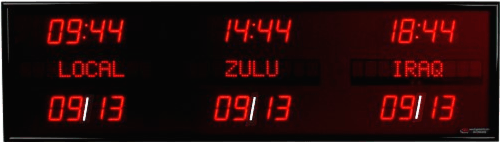

| 6613B | Yes | 3 | Red | 1.8" | 1.2" | 4 | 40 ft. | 11.25 | 39.25 | 2.25 | Yes |

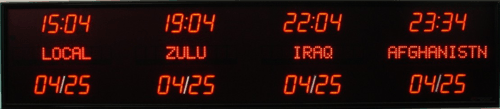

| 6613C | Yes | 4 | Red | 1.8" | 1.2" | 3 | 40 ft. | 11.25 | 52.25 | 2.25 | Yes |
| 6613D | Yes | 5 | Red | 1.8" | 1.2" | 2 | 40 ft. | 11.25 | 65.25 | 2.25 | Yes |
| 6613M | Yes | 6 | Red | 1.8" | 1.2" | 2 | 40 ft. | 11.25 | 78.25 | 2.25 | Yes |
| 6613N | n/a | 7 | Red | 1.8" | 1.2" | 1 | 40 ft. | 11.25 | 91.25 | 2.25 | Yes |
| 6613O | Yes | 8 | Red | 1.8" | 1.2" | 1 | 40 ft. | 11.25 | 99.25 | 2.25 | Yes |
| 6613E | n/a | 2 | Red | 2.5" | 1.2" | 6 | 75 ft. | 14.25 | 26.25 | 2.25 | Yes |
| 6613F | n/a | 3 | Red | 2.5" | 1.2" | 4 | 75 ft. | 14.25 | 39.25 | 2.25 | Yes |

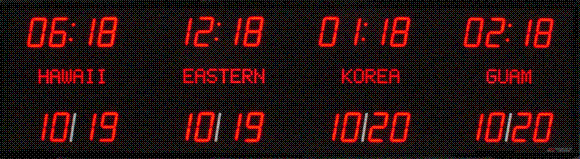

| 6613G | Yes | 4 | Red | 2.5" | 1.2" | 3 | 75 ft. | 14.25 | 52.25 | 2.25 | Yes |

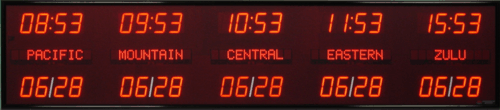

| 6613H | Yes | 5 | Red | 2.5" | 1.2" | 2 | 75 ft. | 14.25 | 65.25 | 2.25 | Yes |

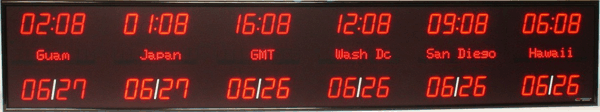

| 6613P | Yes | 6 | Red | 2.5" | 1.2" | 2 | 75 ft. | 14.25 | 78.25 | 2.25 | Yes |
| 6613Q | n/a | 7 | Red | 2.5" | 1.2" | 1 | 75 ft. | 14.25 | 91.25 | 2.25 | Yes |
| 6613R | Yes | 8 | Red | 2.5" | 1.2" | 1 | 75 ft. | 14.25 | 99.25 | 2.25 | Yes |
| 6613I | n/a | 2 | Red | 4.0" | 2.0" | 6 | 100 ft. | 20.25 | 40.25 | 2.25 | Yes |
| 6613J | n/a | 3 | Red | 4.0" | 2.0" | 4 | 100 ft. | 20.25 | 60.25 | 2.25 | Yes |
| 6613K | n/a | 4 | Red | 4.0" | 2.0" | 3 | 100 ft. | 20.25 | 80.25 | 2.25 | Yes |
| 6613L | n/a | 5 | Red | 4.0" | 2.0" | 2 | 100 ft. | 20.25 | 99.25 | 2.25 | Yes |
