Style 3010
Time Zone Display Style 3010
 |
The 3010 series time zone displays have bar segment time displays with a ten character dot matrix digital zone label oriented in a vertical column. The digital zone labels can hold any ASCII test string and is independent of the time zone parameters. The unit can display up to 24 time zones even if there is less physical displays by paging through the time zones. A six time zone display can have six pages of time zone information. Page duration is programmable or can be configured to manually page flip using the included infrared remote. Each display includes a high accuracy crystal oscillator, infrared remote control and your choice of Ethernet, USB or RS232 interface for time zone parameter control. For models in a horizontal orientation see the 6610 series.
|

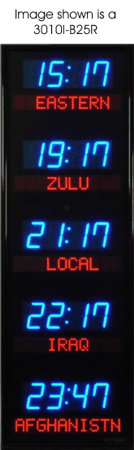

Model 3010I-B25R with Sample Zones |
|
| Model | Photo | Zones | LED Color | Time Display | Dot Matrix Label Displays | Max. Pages | Viewing Distance | H | W | D | GSA Item |

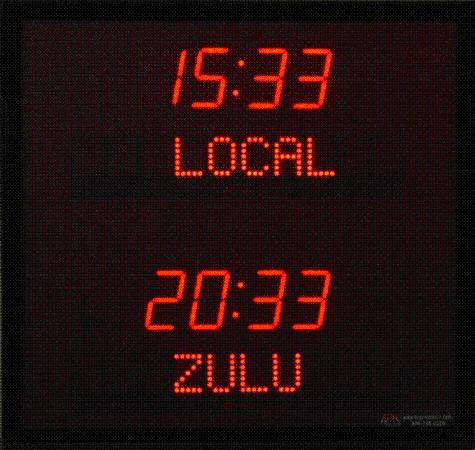

| 3010R | Yes | 2 | Red | 1.8" | 1.2" | 12 | 40 ft. | 14.25 | 15.25 | 2.25 | No |

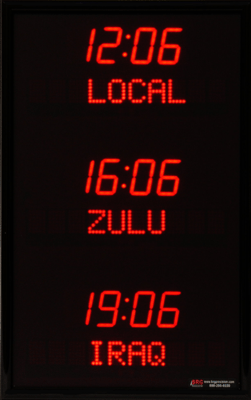

| 3010A | Yes | 3 | Red | 1.8" | 1.2" | 8 | 40 ft. | 21.25 | 15.25 | 2.25 | No |
| 3010B | n/a | 4 | Red | 1.8" | 1.2" | 6 | 40 ft. | 28.25 | 15.25 | 2.25 | No |
| 3010C | Yes | 5 | Red | 1.8" | 1.2" | 4 | 40 ft. | 35.35 | 15.25 | 2.25 | No |
| 3010D | Yes | 6 | Red | 1.8" | 1.2" | 4 | 40 ft. | 42.25 | 15.25 | 2.25 | No |
| 3010E | Yes | 7 | Red | 1.8" | 1.2" | 3 | 40 ft. | 49.25 | 15.25 | 2.25 | No |
| 3010F | n/a | 8 | Red | 1.8" | 1.2" | 3 | 40 ft. | 56.25 | 15.25 | 2.25 | No |
| 3010T | n/a | 2 | Red | 2.5" | 1.2" | 12 | 75 ft. | 16.25 | 15.25 | 2.25 | No |
| 3010G | n/a | 3 | Red | 2.5" | 1.2" | 8 | 75 ft. | 24.25 | 15.25 | 2.25 | No |
| 3010H | Yes | 4 | Red | 2.5" | 1.2" | 6 | 75 ft. | 32.25 | 15.25 | 2.25 | No |
| 3010I | Yes | 5 | Red | 2.5" | 1.2" | 4 | 75 ft. | 40.25 | 15.25 | 2.25 | No |
| 3010J | n/a | 6 | Red | 2.5" | 1.2" | 4 | 75 ft. | 48.25 | 15.25 | 2.25 | No |
| 3010K | n/a | 7 | Red | 2.5" | 1.2" | 3 | 75 ft. | 56.25 | 15.25 | 2.25 | No |
| 3010L | n/a | 8 | Red | 2.5" | 1.2" | 3 | 75 ft. | 64.25 | 15.25 | 2.25 | No |
| 3010V | n/a | 2 | Red | 4.0" | 2.0" | 12 | 100 ft. | 24.25 | 24.25 | 2.25 | No |
| 3010M | n/a | 3 | Red | 4.0" | 2.0" | 8 | 100 ft. | 36.25 | 24.25 | 2.25 | No |
| 3010N | n/a | 4 | Red | 4.0" | 2.0" | 6 | 100 ft. | 48.25 | 24.25 | 2.25 | No |
| 3010O | n/a | 5 | Red | 4.0" | 2.0" | 4 | 100 ft. | 60.25 | 24.25 | 2.25 | No |
