Digital Double Line Alpha Clocks or Alpha-numeric Clocks

Alpha Double Line Displays

All the capabilities of the single line Alpha Clocks is also available in a double line display. No need to page flip or scroll information. Of course that functionality can be programmed into the display to see the time and date information in the format that works best for you.

Model	Photo	LED Digits per row	LED Color	LED Height	Viewing Distance	H	W	D

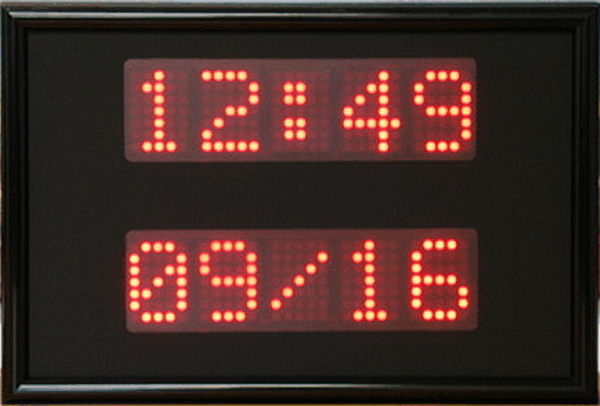

AC20-01-05-02-G	Yes	5	Green	2.0"	70 ft.	10.25	15.25	2.25
AC20-01-05-02-R	Yes	5	Red	2.0"	70 ft.	10.25	15.25	2.25
AC20-01-05-02-Y	Yes	5	Yellow	2.0"	70 ft.	10.25	15.25	2.25

AC40-01-05-02-R	n/a	5	Red	4.0"	100 ft.	12.25	24.25	2.25

AC12-01-10-02-G	Yes	10	Green	1.2"	35 ft.	8.25	16.25	2.25
AC12-01-10-02-R	Yes	10	Red	1.2"	35 ft.	8.25	16.25	2.25
AC12-01-10-02-Y	Yes	10	Yellow	1.2"	35 ft.	8.25	16.25	2.25

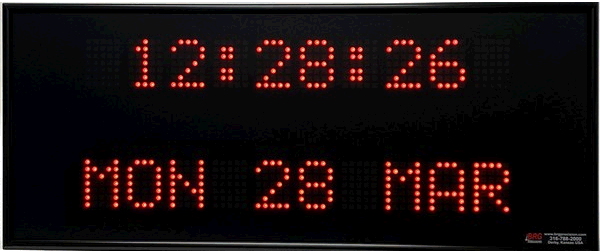

AC20-01-10-02-G	Yes	10	Green	2.0"	70 ft.	10.25	24.25	2.25
AC20-01-10-02-R	Yes	10	Red	2.0"	70 ft.	10.25	24.25	2.25
AC20-01-10-02-Y	n/a	10	Yellow	2.0"	70 ft.	10.25	24.25	2.25

AC40-01-10-02-R	Yes	10	Red	4.0"	100 ft.	12.25	42.25	2.25

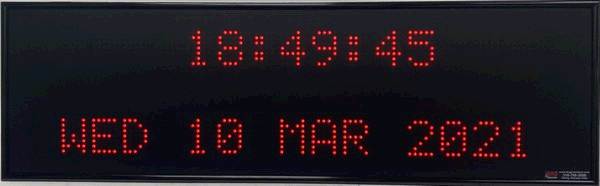

AC20-01-15-02-G	n/a	15	Green	2.0"	70 ft.	10.25	33.25	2.25
AC20-01-15-02-R	n/a	15	Red	2.0"	70 ft.	10.25	33.25	2.25
AC20-01-15-02-Y	n/a	15	Yellow	2.0"	70 ft.	10.25	33.25	2.25

AC40-01-15-02-R	n/a	15	Red	4.0"	100 ft.	12.25	58.25	2.25

AC12-01-20-02-G	n/a	20	Green	1.2"	35 ft.	8.25	26.25	2.25
AC12-01-20-02-R	n/a	20	Red	1.2"	35 ft.	8.25	26.25	2.25
AC12-01-20-02-Y	n/a	20	Yellow	1.2"	35 ft.	8.25	26.25	2.25

AC20-01-20-02-G	n/a	20	Green	2.0"	70 ft.	10.25	42.25	2.25
AC20-01-20-021-R	n/a	20	Red	2.0"	70 ft.	10.25	42.25	2.25
AC20-01-20-02-Y	n/a	20	Yellow	2.0"	70 ft.	10.25	42.25	2.25

AC40-01-20-02-R	n/a	20	Red	4.0"	100 ft.	12.25	76.25	2.25
